Center Circle

In Powerviz Activity Gauge, you can customize the center circle area. It helps make the visual more engaging. In this section, we will discuss the different types of layers available in the center circle and how to set them up.

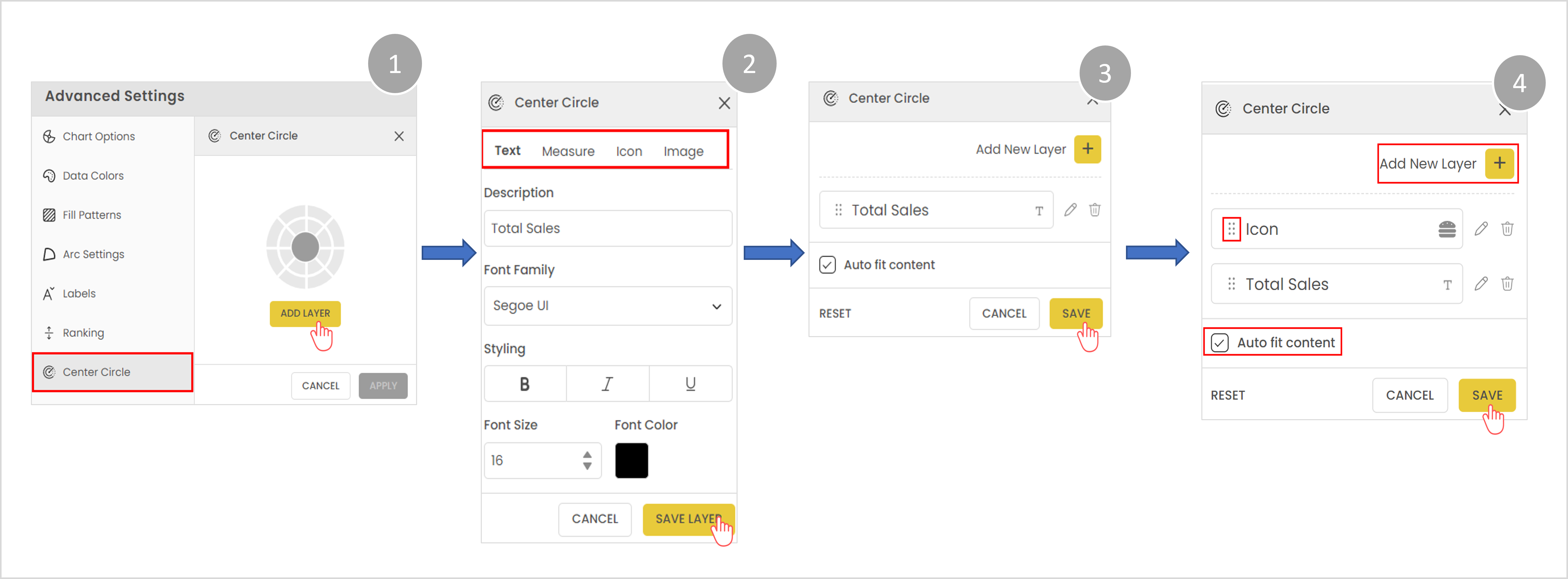

Steps to apply the layer​​

1. Open the center circle, and click on Add Layer.

2. Choose the layer type. Apply settings, and then select Save Layer.

3. After this, make sure to hit Apply to save the changes.

4. You can add multiple layers in the center circle.

5. Use the 6-dot icon to change the order of layers.

6. Keep "Auto fit content" enabled for the best fit.

Types of layers​​

Text​​

Add custom text in the center area. This contains the following features.

Feature	Functionality
Description	Input text here.
Font Formatting	Customize the font family, color, and size.
Advanced Styling	Bold, italic, and underline.

Measure​

The measure allows you to display the measure field value in the center circle.

Feature	Functionality
Field Name	Select the measure here.
Field Aggregation	Indicates the aggregation type. It only contains SUM.
Font Formatting	Customize the font color, size, and family.
Advanced Styling	Bold, italic, and underline.

NOTE

This layer is dynamic and changes with filters

Icon​

Choose icons from 2000+ options. Customize the icons

• Color

• Size

Image​

Select a custom image or logo to place in the center circle. You can change the image's height, width, and aspect ratio.

INFO

Images only accept PNG, JPG, and GIF formats. The maximum size limit is 5MB.

Use "Auto fit content" to compress all layers into the center circle.
