  1. Activity Gauge
  2. Advance settings: Introduction

Gauge Options

PreviousAdvance settings: IntroductionNextTarget

Last updated 7 months ago

Gauge options in the Activity Gauge control the display style and interaction. The default is a full-circle Activity Gauge, but you can choose preset styles or create your own. There are four display options available: 1. Full Circle 2. Horizontal Semi Circle 3. Vertical Semi-Circle 4. Custom Angle

Step to change the display type:

Steps
Actions
Explanation

Step 1

Go to the chart options.

Click on the “⚙️” icon to open advanced settings.

Step 2

Select the display.

In case of custom, input start and end angles.

Step 3

Hit apply to save.

INFO

The custom angle starts from 0 to 360°. For the mirror effect, the degree goes from -360° to 0.

Apart from Arc styles, we have other settings: Arc Opacity: The arc opacity setting allows you to adjust the transparency of the arcs in the Activity Gauge visualization. It accepts values ranging from 0 to 100, where higher values make the arcs more Solid, and lower values increase transparency. Arc Spacing: This setting lets you add space between the arcs in the visualization. It helps make the arcs easier to distinguish and improves visibility. Remaining Arc: Same Thickness As Arc: When the toggle is turned on, the thickness of the arc remains the same. However, when the toggle is turned off, it provides the option to adjust the thickness of the remaining arc. Same Color As Arc: When the toggle is enabled, the color of the arc remains unchanged. However, when the toggle is disabled, you can customize the color of the arc according to your specific requirements. Remaining Arc Opacity(0-100): This setting enables you to adjust the opacity of the remaining arc based on your specific requirements.

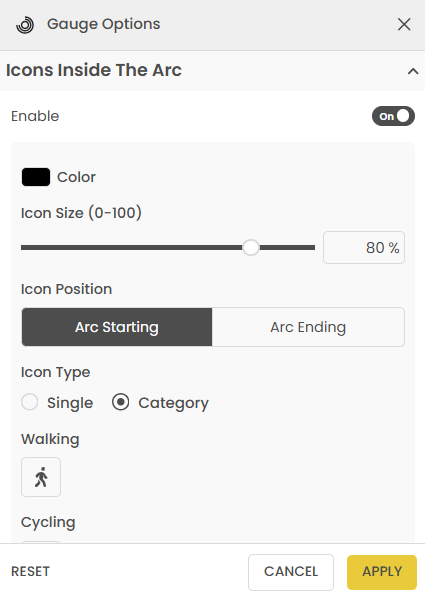

Icons Inside The Arc: We can enable or disable this setting based on our preference. We can disable it if we do not want to utilize this setting. Color: We can set the color as per our requirement Icon Size (0-100): We can set the size of the icon Icon Position: There are two positions Arc Starting – This setting allows you to add an icon to the Arc starting position Arc Ending – This setting allows you to add an icon to the Arc ending position Icon Type: Single - This setting allows you to add a single icon to all levels of the chart.

Category – It will give us the option for adding different icons as per requirement for all the levels in the chart

To add an icon, simply click on the empty box. A popup will appear, allowing you to select an icon from the available options or search for a specific icon that meets your requirements. Once selected, click apply to confirm the icon choice.
